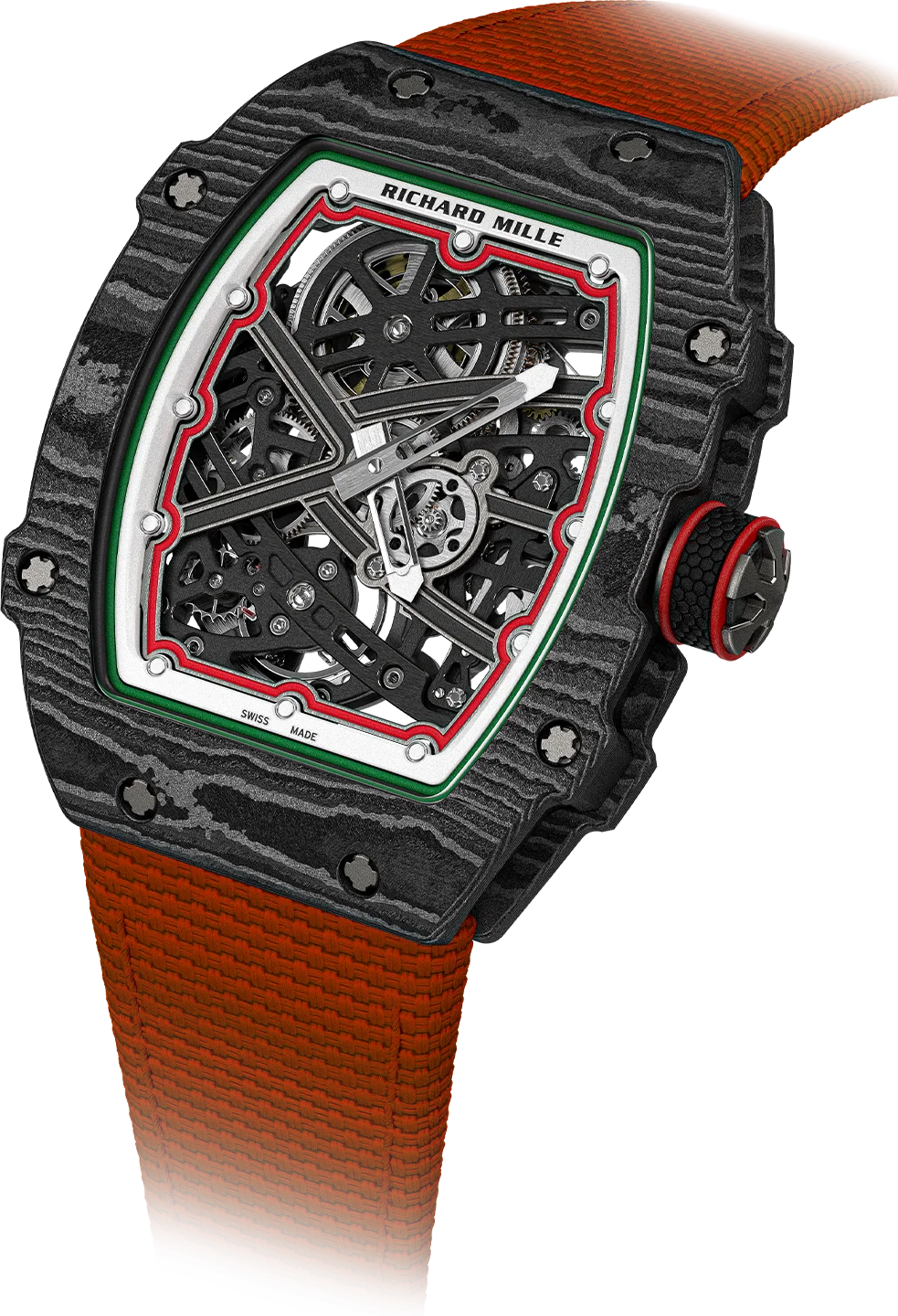

RM 67-02

Automatic Winding Extra FlatAlso known as “South Africa” · “Qatar” · “France” +4

Skeletonised automatic-winding movement with hours and minutes.

Around 50 hours (± 10%).

Grade 5 titanium with black DLC treatment lends great rigidity to the baseplate, as well as precise surface flatness, which is essential to perfect functioning of the gear train. Bridges are also in grade 5 titanium, with a grey DLC treatment. These components are satin-finished, microblasted and bevelled by hand.

The skeletonised baseplate and bridges were subjected to separate and extensive validation tests to ensure they met rigorous strength requirements.

Relying on a rotor made of Carbon TPT® and white gold, combined with the OneWay® winding system with ceramic ball bearings, the barrel can be efficiently wound while maintaining the compact dimensions of an extra-flat, skeletonised movement. Its tight, taut lines sharply underscore the sporty quality of this timepiece.

Movement dimensions: 28.40 x 31.25

Thickness : 4.00 mm

Number of jewels: 25

Balance: CuBe, 4 arms, 4 setting screws, moment of inertia 7.5 mg•cm2, angle of lift 50º

Frequency: 28,800 vph (4 Hz)

Balance spring: AK3

Shock protection: INCABLOC 908.22.211.100 (transparent)

The cases of the RM 67-02 are made from Quartz TPT® and Carbon TPT®. These materials, which possess a remarkable damascene appearance, are composed of layers of parallel filaments obtained from separating silica and carbon threads.

Quartz fibres are generally used for very high-performance applications due to their resistance to high temperatures, their strength and their transparency to electromagnetic waves. These fibres are specifically aligned in layers no thicker than 45 microns and saturated in resins developed specially for Richard Mille. These layers are then stacked using an automatic positioning system that changes the orientation of the fibre between each layer by 45°. After being heated to 120°C and subjected to a pressure of 6 bars, they are machined on a CNC machine at Richard Mille’s manufacturing facility. Carbon TPT® is made by an identical process, but from carbon threads.

The complete case construction is water-resistant to 30 metres thanks to two Nitrile O-ring seals and is assembled with 12 spline screws in grade 5 titanium and 316L stainless steel washers.

With its satin-finished, bevelled hands and sharp lines, the calibre CRMA7 actively conveys a sense of power and strength. The dial, whose lines echo those of the movement, is machined from a sheet of titanium only four tenths of a millimetre thick. Treated with a black DLC coating, it is then painted by hand in the colours of the Richard Mille partner’s flag.

Thickness: 0.40mm

For superlative wearing enjoyment of the RM 67-02, Richard Mille has equipped this timepiece with its new comfort strap.

Entirely seamless and non-slip, the strap is highly elastic, allowing it to perfectly fit the contours of each wrist’s individual morphology.

• • Hand-polished anglage

• • Microblasted milled section

• • Microblasted sinks

• • Grey and black DLC treatment for the baseplate and bridges

• • Satin-finished surfaces

• • Hand-polished anglage

• • Hand-polished bevelling

• • Hand-polished locking section

• • Concave chamfering with a diamond tool

• • Diamond-polished angles

• • Circular-finished faces

• • Rhodium plating (before cutting the teeth)

• • Minimal corrections applied to the wheels in order to preserve geometry and performance

This type of barrel provides the following advantages:

The phenomenon of periodic internal mainspring adhesion is significantly diminished, thereby increasing performance. Provision of an excellent mainspring delta curve with an ideal power reserve/performance and regularity ratio.

The entire going train of the watch, the primary transmitter of power through the movement, utilises a special profile for the teeth of the wheels. Developed specifically for Richard Mille’s in-house calibres, the wheels employ a 20° pressure angle. This system equalises any discrepancies that might arise between the centres of each wheel, for instance, during thermal changes and normal use, and promotes excellent torque transmission to the balance wheel, thus supporting excellent chronometric characteristics.

This permits better control of the torque applied to screws during assembly.

These screws are therefore unaffected by physical manipulation during assembly or disassembly and age well.
